Video QoS & QoE Monitoring for all xVOD services – non-linear OTT services
StreamProbe VOD
StreamProbe solution provides a centralized overview of the Service Availability and Video Quality throughout all the strategic stages of the media processing & delivery flow, by 24/7 monitoring.
Ideal for all TV Service Providers & Network Operators – linear Broadcast TV, IPTV, Cable TV, Satellite TV, OTT, VOD, nPVR – Transport Contribution & Distribution and Service Platform Providers, looking to ensure the best End-User Quality of Experience all while optimizing OPEX.
"*" indicates required fields
Applications
- End-to-end Availability (QoS) and Quality (QoE) for all VOD based Services
- Increase uptime by detecting issues before your customers do
On demand monitoring of both static & dynamic libraries - Optimize daily operation & maintenance
Drill down analysis, on-error proof recording - Quality Reports generation for SLA commitments
Benefits
- Higly configurable monitoring Campaigns
- One single unified web GUI for all Services Management
Contribution, encoding, packaging, transport, linear, VOD
Fast training of operational teams - Pay as you grow with flexible licensing & deployment architecture
HighDensity full SW solution
Centralized or distributed architecture, bare metal, virtualized, on-prem, cloud AW
Ensure all xVOD end users can watch what they want when they want!
StreamProbe VOD enables Availability QoS & Content Quality QoE check for all VOD based services: xVOD, Catch-up/Replay, PVR (personal video recorder), ABR assets for DAI…
Adapted for both static and dynamic VOD Libraries, several monitoring modes are proposed with manual or automatic asset provisioning capabilities.
StreamProbe VOD offers the possibility to schedule all ABR assets quality check via configurable monitoring Campaigns.
High level statistics are provided for an evaluation of the library’s quality, with possibility to drill down to each asset’s analysis details and pin-point the faulty sequnces.
The monitoring information can be exported to generate library quality reports. Real-time notifications can be sent out to 3rd party NMS systems or by email.
Monitor what you need, when you need
- Highly configurable monitoring Campaigns adapted for both static & dynamic libraries
- One-shot or recurrent (several hours, days, weeks..) monitoring Campaigns
- Monitoring modes: QoS, QoS & QoE, QoS with QoE the first time only
- ABR asset provisioning: manual (CSV import) or automatic via a dedicated API (requires specific integration services)
Library Quality Stats & Reports
- QoS & QoE quality evaluation globally for each Campaign, and also detailed down to the asset itself
- All quality statistics & monioring results exported within PDF report files*
- Fault history reports for operational maintenance
QoS - ABR Assets Availability & Integrity
- Full HLS, MPEG-DASH monitoring
- Playlist integrity check
- All Profiles availability check
- Fast library availability check when limited to QoS only
QoE - Audio/Video Service Quality
- Full content monitoring of all ABR profiles
- Audio & Video defect detection: freeze, black screen, silence
- ABR Subtitles HLS WebVTT and DASH TTML: decoding and display
- Video image display
Per Asset dedicated monitoring results
- ABR asset Quality overview: alarms timeline with associated video thumbnails
- Visual tool for fault investigation on all ABR stream’s profiles, up to 7 days
DRM support
- ABR streams decryption capabilities
- Via direct Key Server access (proprietary, CPIX)
- CENC, Sample-AES, AES-128 – Widevine, FairPlay, PlayReady
System Integration & NBI
- Configurable alarming thresholds per Campaign
- NMS integration: SNMPv2 support for alarm traps
*Contact us for availability
MONITORING FEATURES
- QoS - ABR Assets Availability & Integrity check
-
Full HLS, MPEG-DASH monitoring
Playlist integrity check
All Profiles availability check
Fast library availability check when limited to QoS only
- QoE - Service Audio/Video Quality
-
Video defect detection: freeze, black screen, missing Intra frame
Video encoding information: type, pixel format, profile, level, GOP structure and size, image count and weight, width, height, aspect ration, frame rate and type, VB delay
Audio defect detection: silence, level too low/high
Audio encoding information: type, channel number and layout, sample rate and format
Subtitles HLS WebVTT and DASH TTML: decoding and display
Formats: MPEG-1 audio, MPEG-2 audio/video, AAC, HE-AAC, HE-AACv2, AC3 Dolby Digital, EAC-3 Dolby Digital Plus, SD & HD MPEG-4 AVC/H264, 4K HEVC/H265
- Highly configurable monitoring Campaigns
-
Adapted for both static & dynamic libraries
One-shot or recurrent (several hours, days, weeks..)
Monitoring modes: QoS, QoS & QoE, QoS with QoE the first time only
ABR asset provisioning: manual (CSV import) or automatic via a dedicated API (requires specific integration services)
- Library Quality Stats & Reports
-
QoS & QoE quality evaluation globally for each Campaign, and also detailed down to the asset itself
All quality statistics & monioring results exported within PDF report files*
Fault history reports for operational maintenance
- Asset dedicated monitoring results
-
ABR asset Quality overview: alarms timeline with associated video thumbnails
Visual tool for fault investigation on all ABR stream’s profiles, up to 7 days
- DRM support
-
ABR streams decryption capabilities
Via direct Key Server access (proprietary, CPIX)
CENC, Sample-AES, AES-128 – Widevine, FairPlay, PlayReady
- System Integration & NBI
-
Configurable alarming thresholds per Campaign
NMS integration: SNMPv2 support for alarm traps
TECHNICAL CHARACTERISTICS
- SW Appliance solution: Linux OS, VM (ESXi >v6.0, KVM), AWS
- Performance CPU, RAM, HDD depending on the number of assets to monitor simultaneously
*
- *Contact us for availability

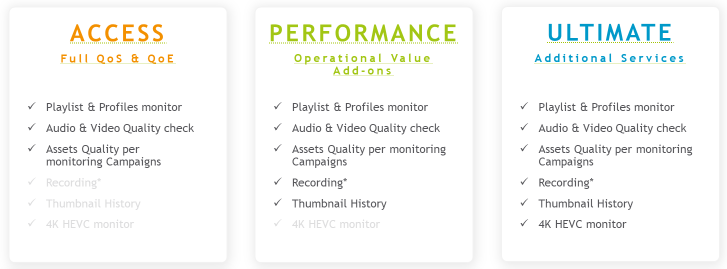

StreamProbe OTT – Perpetual Software License
- Bitrate capacity to monitor: #VODassets to monitor simultaneously
- SW pack
*Contact us for availability
Use cases
VOD Service Quality Monitoring
